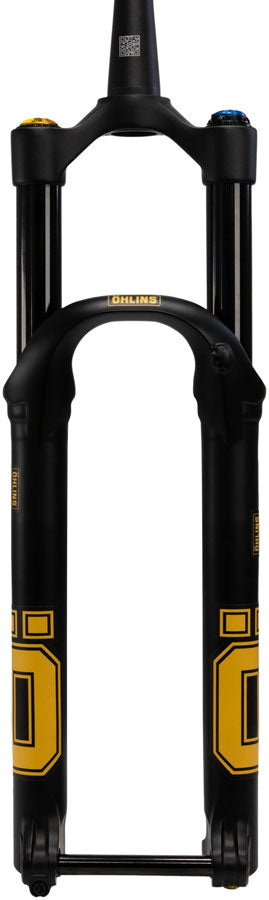

Ohlins RXF34 m.2 Suspension Fork - 29" 130mm 15mm x 110mm 44mm Offset OTX18 Damper Air Spring BLK

Ohlins RXF34 m.2 Suspension Fork - 29" 130mm 15mm x 110mm 44mm Offset OTX18 Damper Air Spring BLK

In Stock
Retail Price $1,250.00
Shipping calculated at checkout.

Product Features

Ohlins RXF34 m.2 Suspension Fork - 29" 130mm 15mm x 110mm 44mm Offset OTX18 Damper Air Spring Black. Designed for riders who cover lots of ground—FAST. The new fork replaces the original RXF34 and offers a short-travel 120-130mm setup optimized for lightweight 29er trail bikes. Weighing in at just 1698g the fork boasts a brand new air spring and damper adapted for the demands of the emerging riding style while still carrying all the hallmarks of Öhlins’ race-proven performance suspension seen from its long-travel single-crown cousins—the RXF36 m.2 & RXF38 m.2. The RXF34 m.2 uses the newly designed OTX18 damper which purpose-built for lightweight trail bikes. The new damper is paired with a robust yet lightweight air spring that features a positive and self-adjusting negative chamber. With a flex pattern tailored for lightweight trail riding the RXF34 m.2’s super-stiff chassis delivers point-and-shoot precision steering.
  • OTX18 damper shares several key components with its bigger TTX18 brother but weighs 27% less and is optimized for faster and more fluid trail riding striking the optimal balance between traction control weight and stiffness

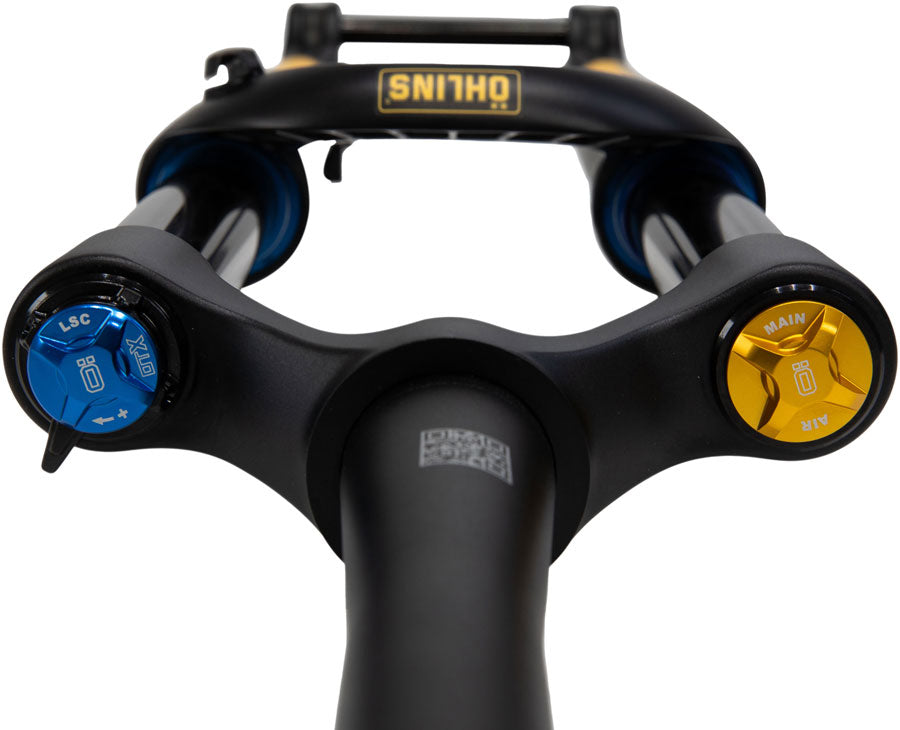

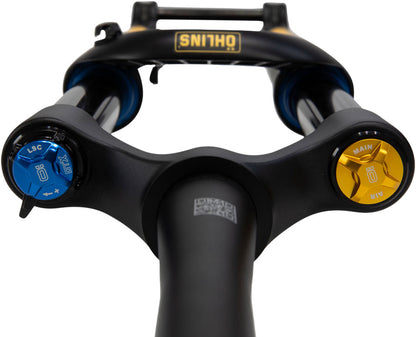

  • Trail-optimized OTX18 damper offers impressive adjustability for fine-tuning with fifteen clicks of low-speed compression and rebound adjustment alongside three for tweaks to high-speed compression
  • Lightweight air spring features a positive chamber that allows riders to tune the spring curve according to their needs using Öhlins’ easy-to-use volume spacer system
  • Negative chamber of the lightweight air spring has been designed for fast trail riding and provides a plush initial feel and superb small bump sensitivity while the spring’s surface and seals also minimize friction and breakaway force to enhance the fork’s smooth ride feel
  • Race-proven chassis design has been achieved via a closed-end outer tube design to increase stiffness impact resistance and the volume of the lower legs to give the rider more power to fine-tune performance to their liking for greater confidence and control
  • 15mm x 110mm boost floating thru-axle axle design to minimize friction
  • eMTB approved
    • TECH SPECS
    Steerer Type TaperedLockout Switch CrownBrake Type Post Mount 180Negative Spring AirTravel (mm) 130Offset 44Axle to Crown Length 541Front Axle 15mm Thru x 110mmMaximum Tire Width 66S.H.I.S. Stem Clamp Diameter 28.6Color BlackCrown Race 40Wheel Size 29"External Adjustments High Speed Compression DampingExternal Adjustments Low Speed Compression DampingExternal Adjustments Rebound DampingDefined Color BlackPositive Spring AirStanchion Diameter 34
