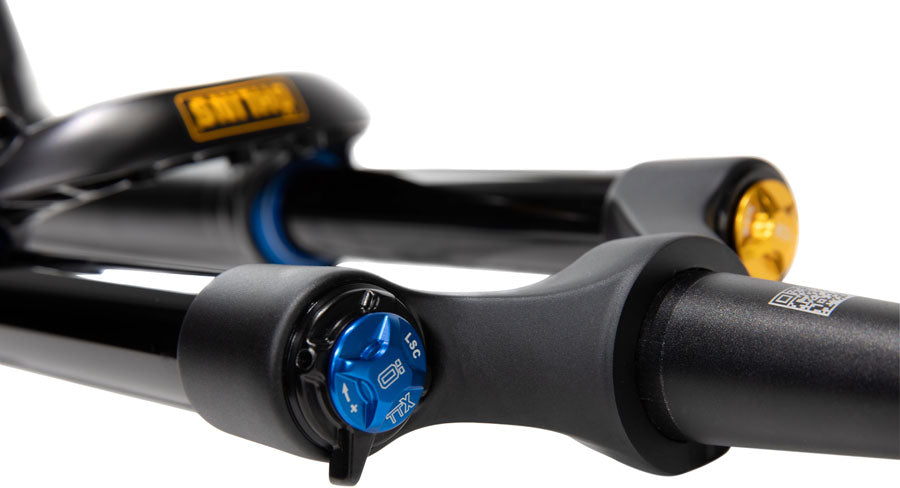

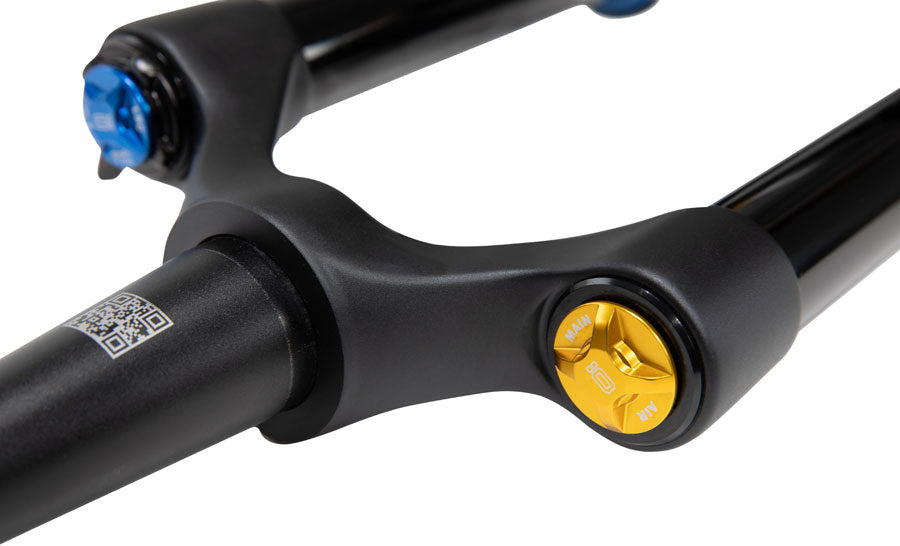

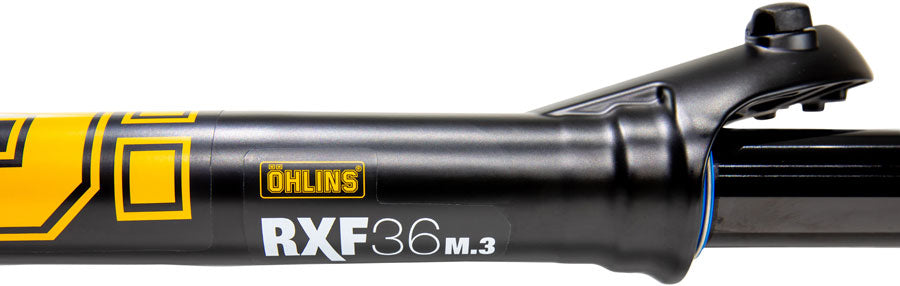

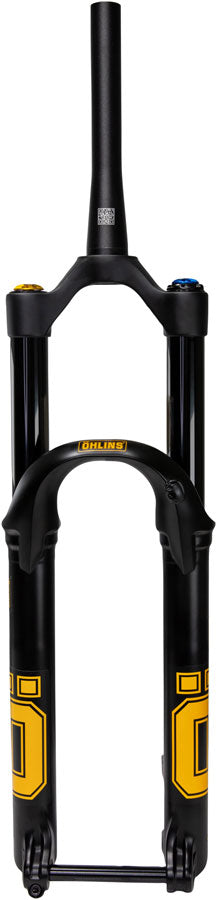

Ohlins RXF36 m.3 Suspension Fork - 29" 160mm 15mm x 110mm 44mm Offset TTX18 Damper Dual Adjust Air Spring Gloss BLK

Ohlins RXF36 m.3 Suspension Fork - 29" 160mm 15mm x 110mm 44mm Offset TTX18 Damper Dual Adjust Air Spring Gloss BLK

Sold out
Retail Price $1,350.00
Shipping calculated at checkout.

Product Features

Ohlins RXF36 m.3 Suspension Fork - 29" 160mm 15mm x 110mm 44mm Offset TTX18 Damper Dual Adjust Air Spring Gloss Black. The RXF36 m.3 features an all-new chassis built around the race-proven TTX18 damper cartridge. This lightweight and highly progressive fork is fully optimized for demanding next-level trail riding performance. The Ohlins race-winning TTX18 damping technology from the DH38 Race Fork has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. The updated settings and reduced chassis friction offers improved sensitivity for greater traction and comfort to conquer any trail~With the new chassis the fork delivers ultra-sensitive tracking over small bumps while maintaining Ohlins signature precise steering and predictable handling—no matter how long or hard its pushed.
  • RXF36 m.3 features increased internal bushing overlap and an optimized configuration for 29” wheels
  • Race-proven adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression 3 clicks of high-speed compression and 16 clicks of rebound adjustment
  • Features Ohlins floating axle design for minimal friction and weighs 2050 g (with bolts and axle)
  • The retuned twin piston three chamber air-spring system allows you to completely dial-in the level of progression—from the initial movement right through to the bottom out
  • Air spring is cartridge-based allowing for easy swaps between coil and air if desired (coil cartridge sold separately)
  • New surface treatment on the 36mm stanchions lowers the friction boosts small bump sensitivity and overall ride smoothness
  • Updated lowers feature a gloss black finish and bold new graphics ensuring riders can feel and see the next level of performance every time they hit the trail or park
  • 15mm x 110mm boost floating thru-axle axle design to minimize friction
  • eMTB approved
    • TECH SPECS
    Steerer Type TaperedLockout Switch CrownBrake Type Post Mount 180Negative Spring AirTravel (mm) 160Offset 44Axle to Crown Length 573Front Axle 15mm Thru x 110mmMaximum Tire Width 66S.H.I.S. Stem Clamp Diameter 28.6Color Gloss BlackCrown Race 40Weight 2050Wheel Size 29"External Adjustments High Speed Compression DampingExternal Adjustments Low Speed Compression DampingExternal Adjustments Rebound DampingDefined Color BlackPositive Spring AirStanchion Diameter 36
